4-Way Rotary Switch

4-Way Rotary Switch
4-Way Rotary Switch
Preview: 4-Way Rotary Switch Preview: 4-Way Rotary Switch
  • Order no. 07260
    • €13.50

    • Description

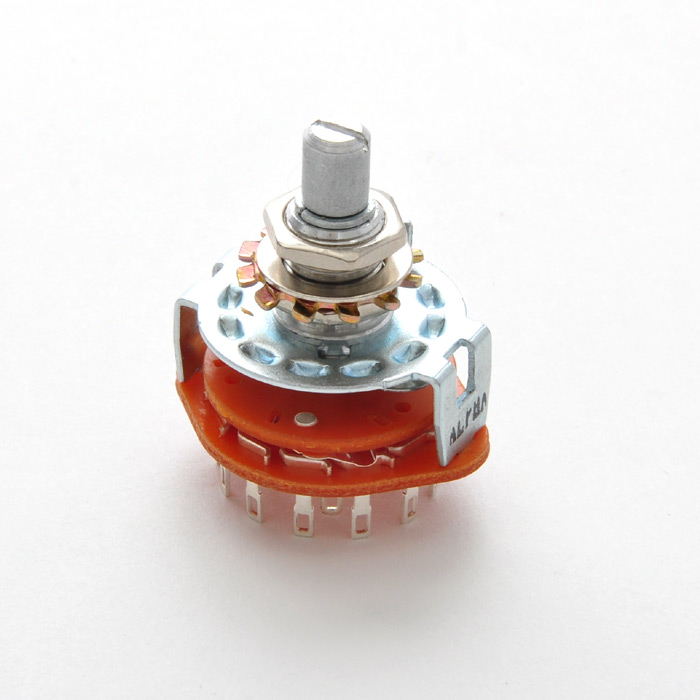

      4-way-rotary-switch with 3 poles. 6 mm solid shaft. 20mm depth, 30 mm lenght and 25 mm width. Wiring instructions are not included. Some Duesenberg Guitars are equipped with this switch.



      • Thread diameter: 9mm
      • Thread height: ca. 10mm
      • Shaft diameter: 6mm
      • Shaft height: ca. 7mm
      • Mounting depth: ca. 25mm


    Further Information

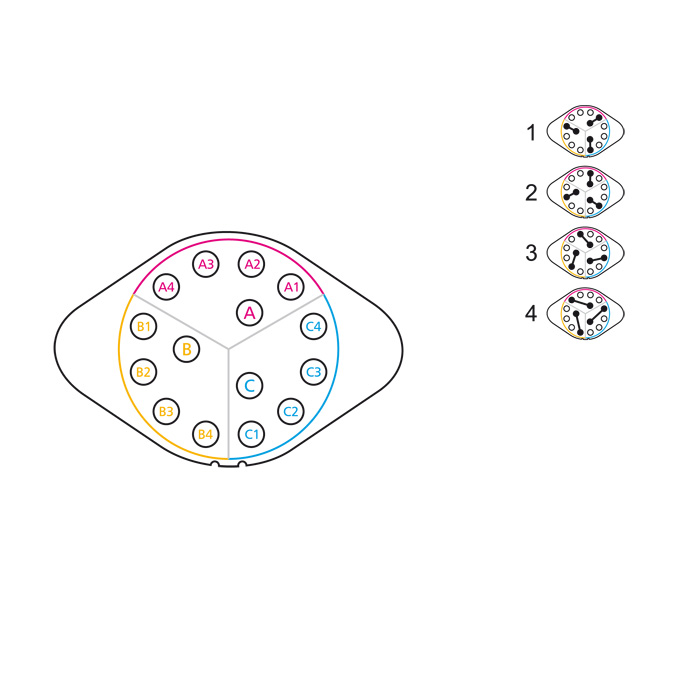

    4-fach Drehschalter mit 3 Ebenen und glatter Achse. Dieser Schalter wird bei einigen Duesenberggitarren als Pickupwahlschalter verwendet. Ca. 20mm Einbautiefe, 25 mm Breite und 30 mm Länge. Prinzipiell handelt es sich bei diesem Schalter um 3 parallel laufende Schalter mit jeweils einem Eingang und 4 getrennten Ausgängen. Damit lassen sich Unmengen von Schaltungen realisieren. Schaltungsvorschläge liegen aber nicht bei. Da ist Eigeninitiative gefragt.



    • Gewindedurchmesser: 9mm
    • Gewindehöhe: ca. 10mm
    • Schaftdurchmesser: 6mm
    • Schafthöhe: ca. 7mm
    • Einbautiefe: ca. 20mm
